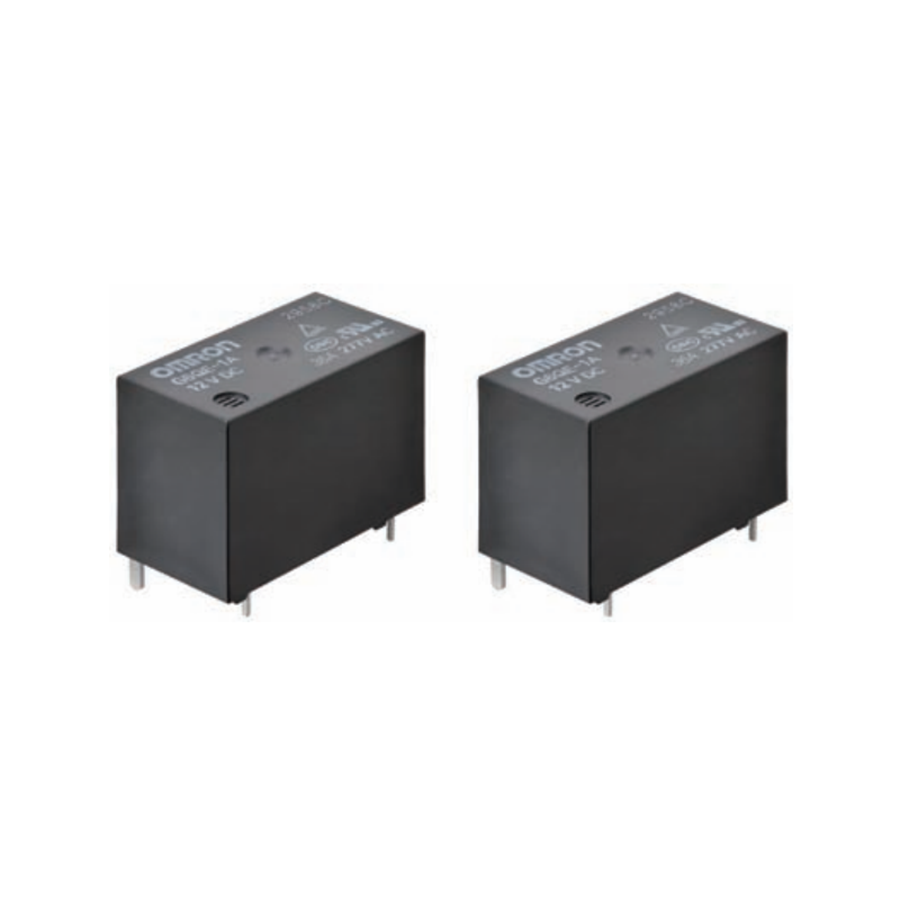

G6QE-1A DC5
Manufacturer:
Omron
Mfr.Part #:
G6QE-1A DC5
Datasheet:
Description:
Power Relays Through Hole 280 mA 17.9 Ω 5 V General Purpose
| Parameter | Value |
|---|---|
| Length | 30.5 mm |
| Width | 16 mm |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Height | 20.5 mm |
| Packaging | Tray |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver Alloy, Cadmium Free |
| Current Rating | 36 A |
| Number of Contacts | 1 |
| Ambient Temperature Range High | 60 °C |
| Contact Resistance | 100 Ω |
| Coil Voltage (DC) | 5 V |
| Coil Current | 280 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 17.9 Ω |
| Relay Type | General Purpose |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Contact Current Rating | 32.48 A |
| switching current | 36 A |
| Termination Style | PC Pin |
| Switching Voltage | 277 V |
| Coil Power | 1.4 W |
| Must Operate Voltage | 3.5 V |
| Must Release Voltage | 250 mV |
Stock: 379
Distributors
pcbx
pcbxUnit Price$3.99252
Ext.Price$3.99252
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.99252 | $3.99252 |
| 10 | $3.33593 | $33.35930 |
| 25 | $3.14903 | $78.72575 |
| 50 | $2.97259 | $148.62950 |
| 100 | $2.82213 | $282.21300 |
